Custom Nissan NV3500 Van Build

This Nissan NV3500 was transformed into a fully self-contained, off-grid capable adventure rig with a premium Victron electrical system, smart storage solutions, and modern aesthetics. The client requested a multi-functional space with integrated lighting, upgraded appliances, and built-in conveniences for both daily use and extended travel.

Exterior Upgrades

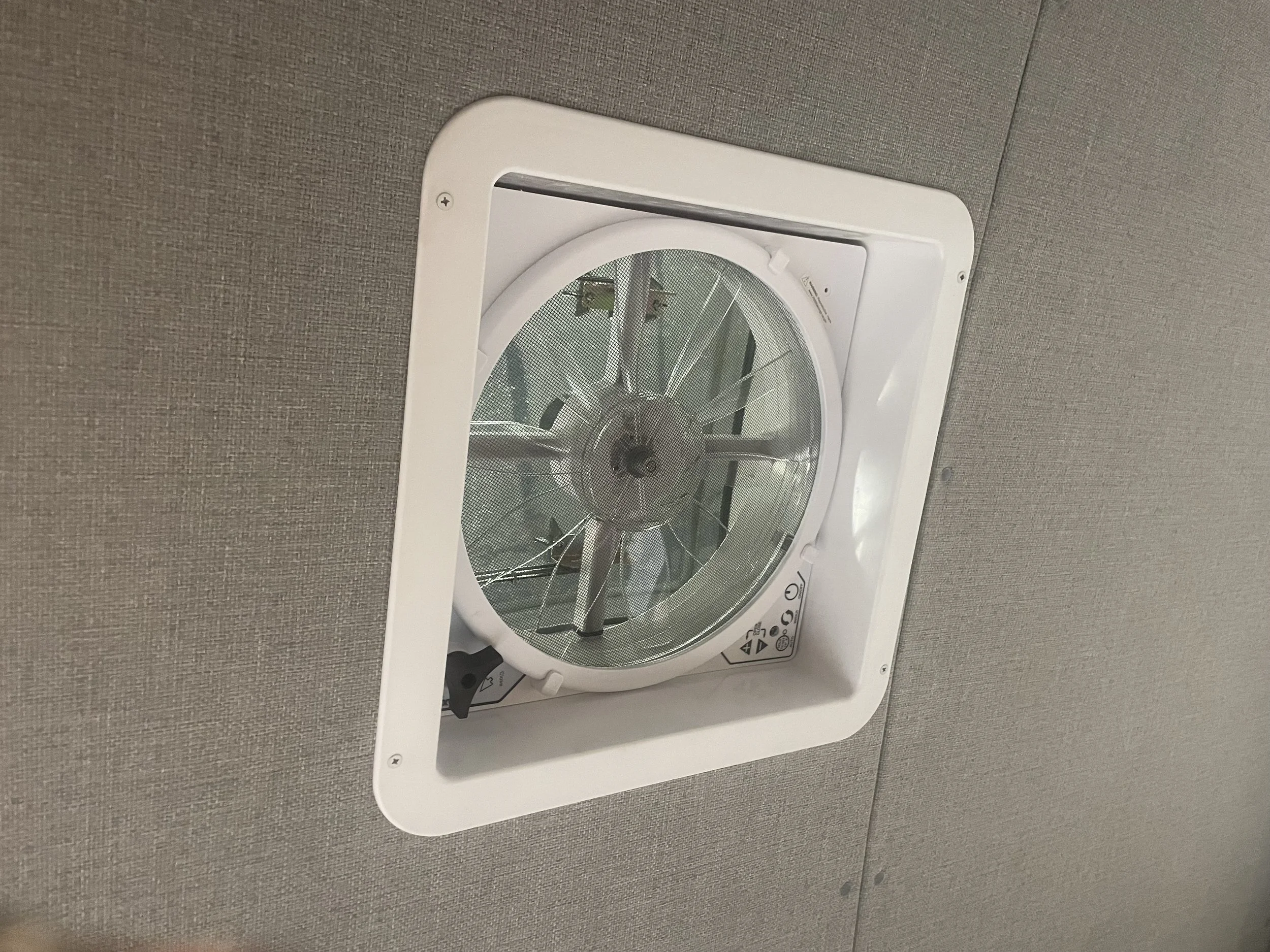

  • Maxxair Deluxe Vent Fan (7500 series) – Powered roof ventilation with remote and rain sensor.

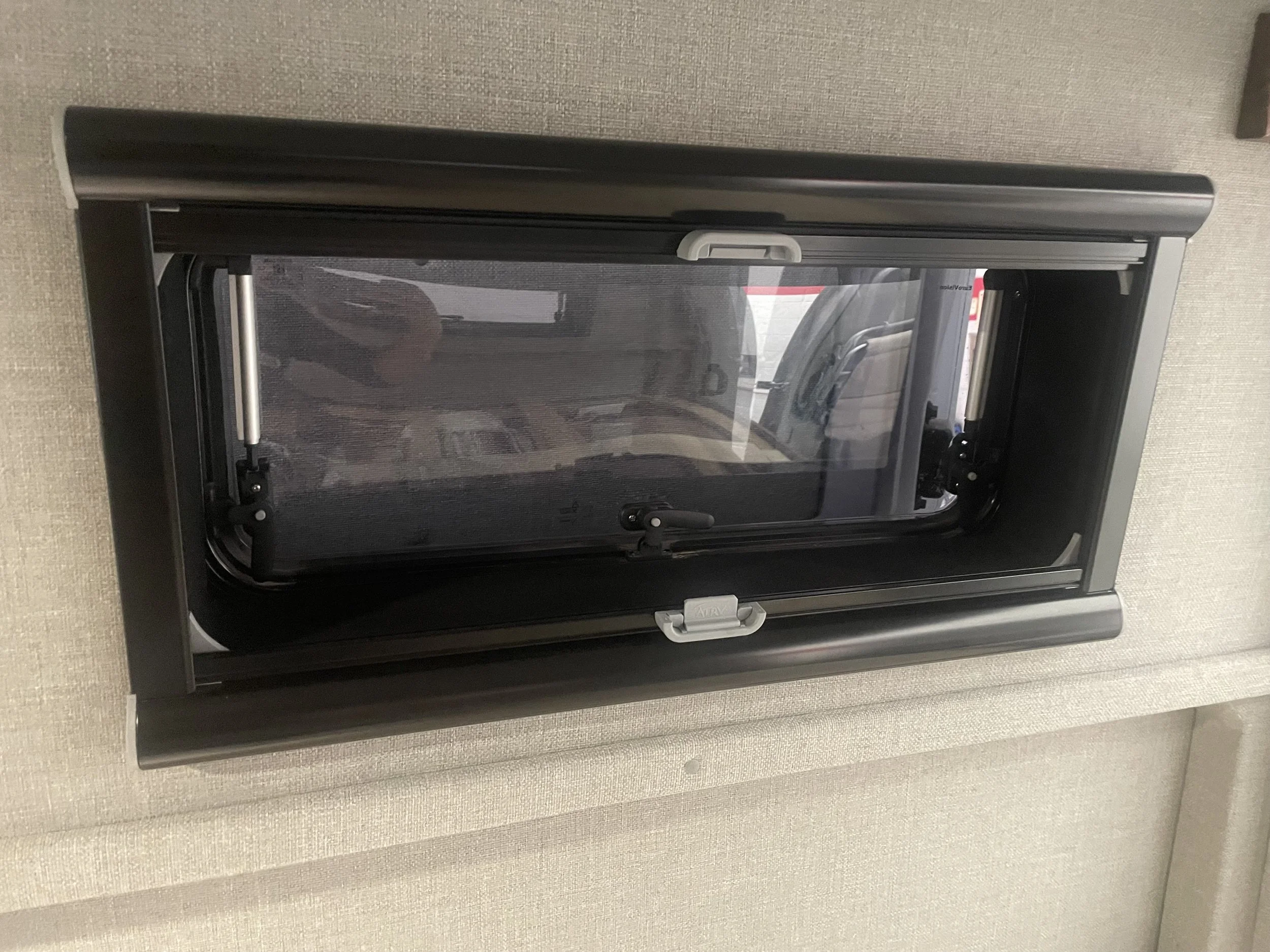

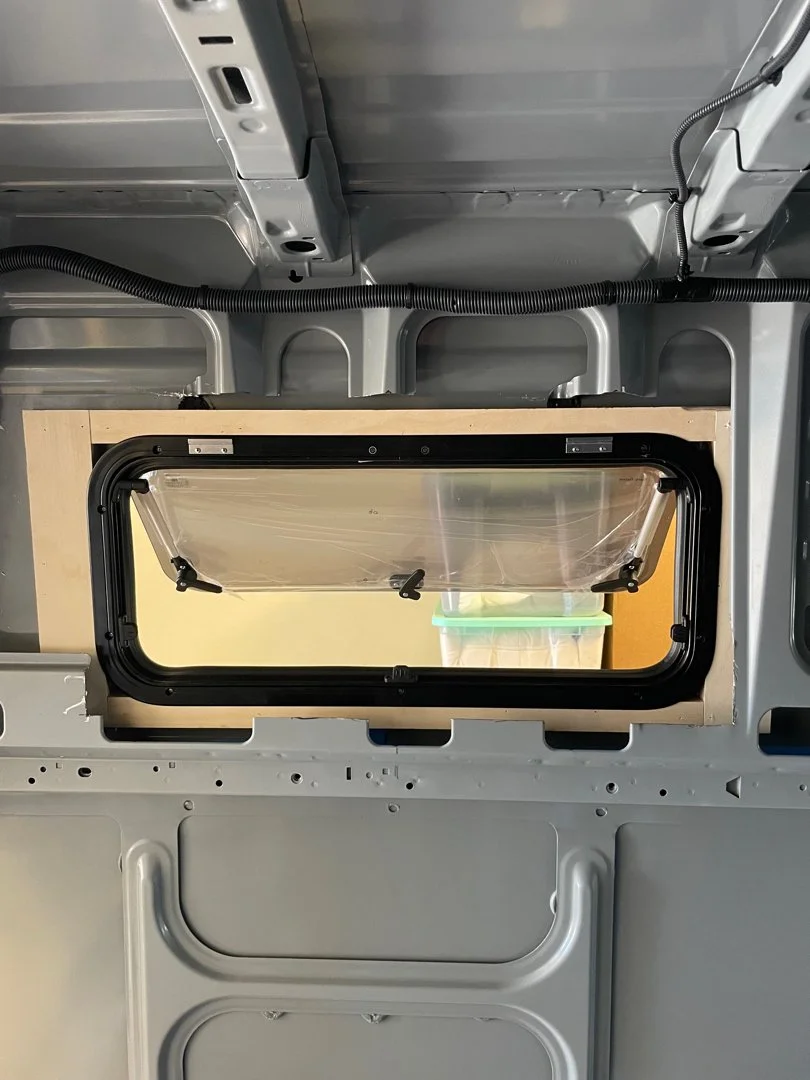

  • Arctic Tern Windows (300mm x 700mm) – Dual-pane acrylic windows with built-in bug screens and blackout shades, installed high in the upper framing for privacy and airflow.

Storage & Cabinetry

  • Upper Cabinets – Custom-built above sink and galley with upgraded soft-close drawers.

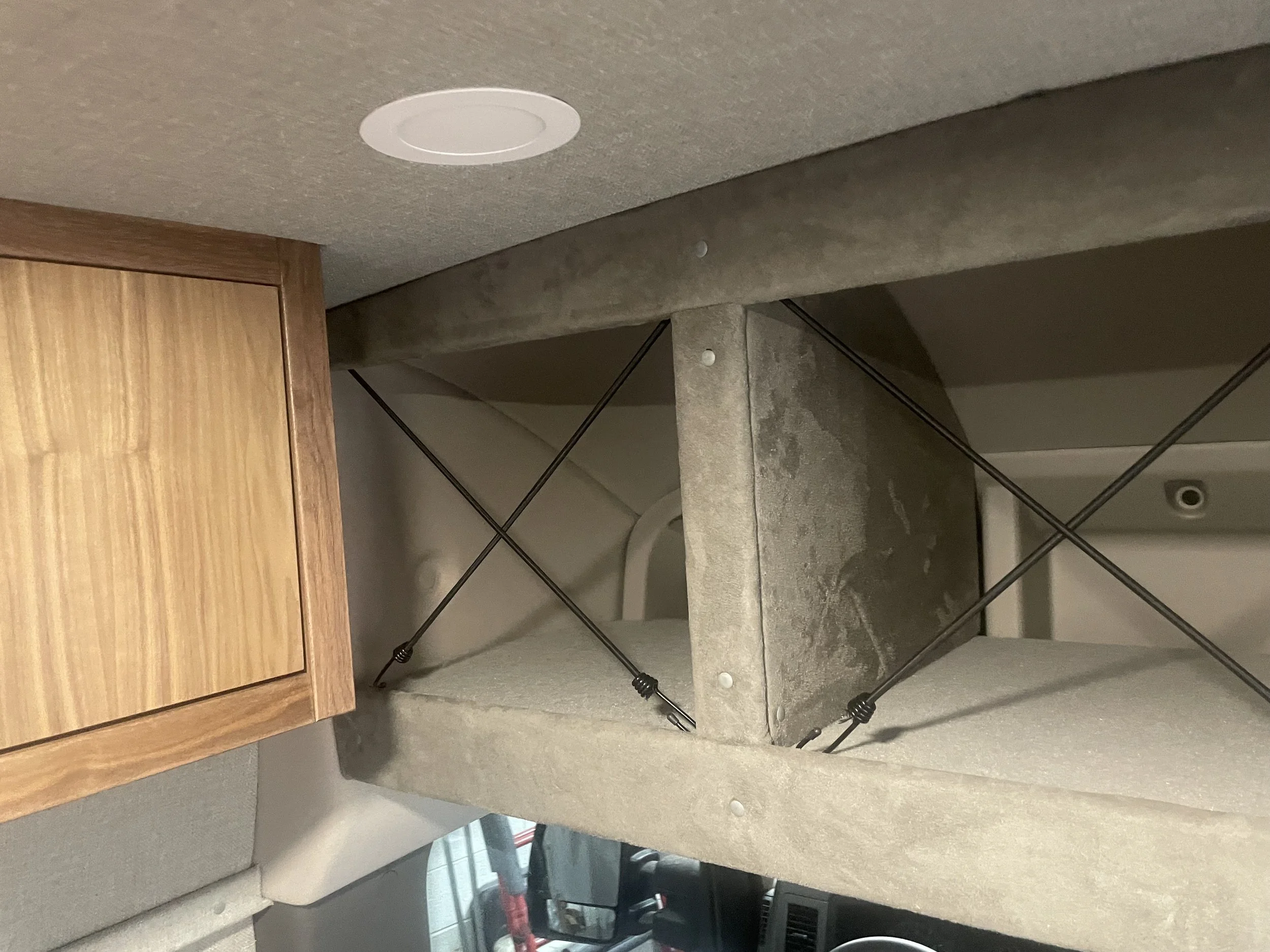

  • Over Cab Cabinets – Factory-look 3-section open face storage.

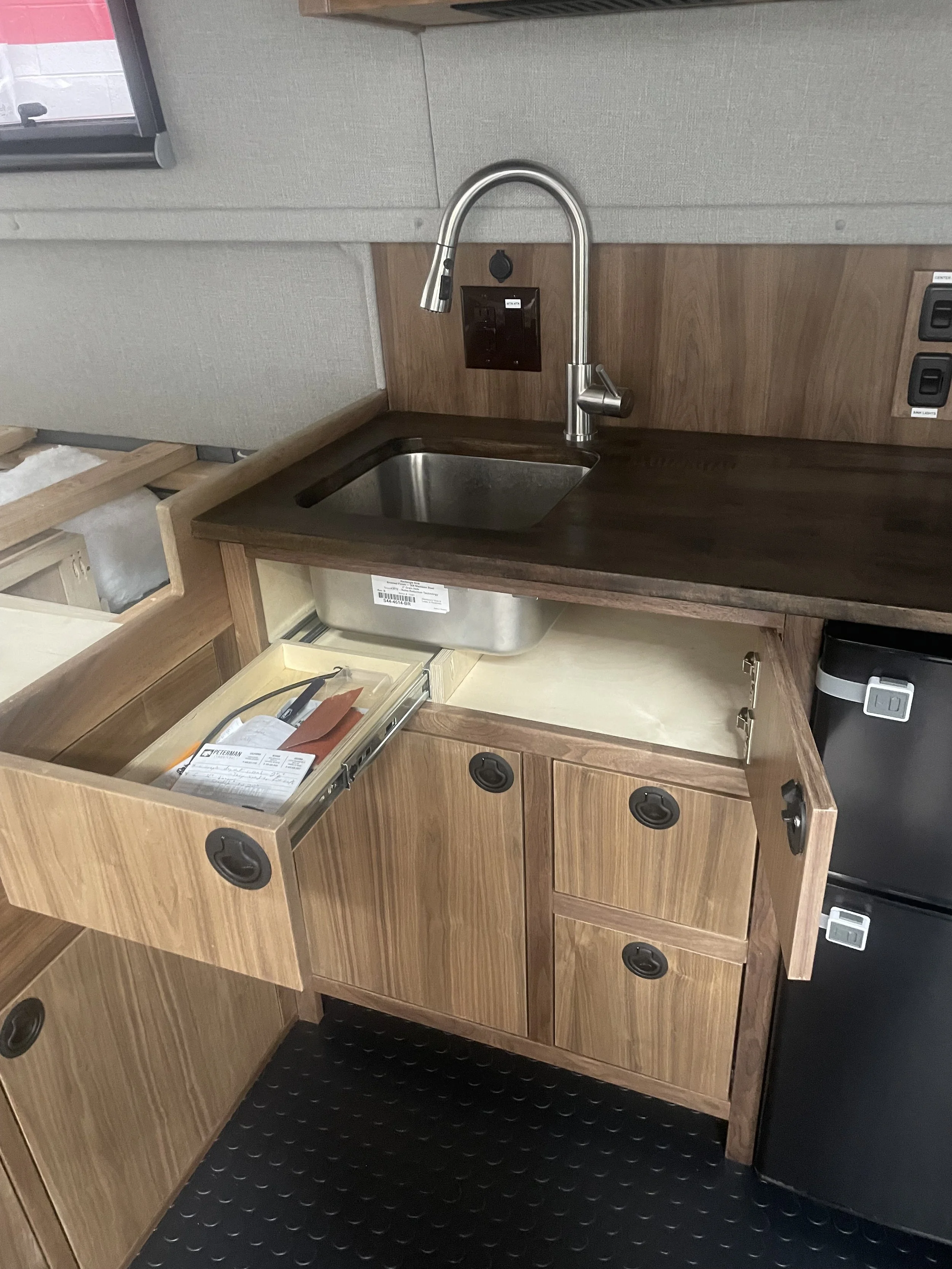

  • Galley – Custom kitchen galley cabinet with WeWe brushed nickel pull-out faucet and stainless sink.

  • Under-Bed Cabinet – Includes:

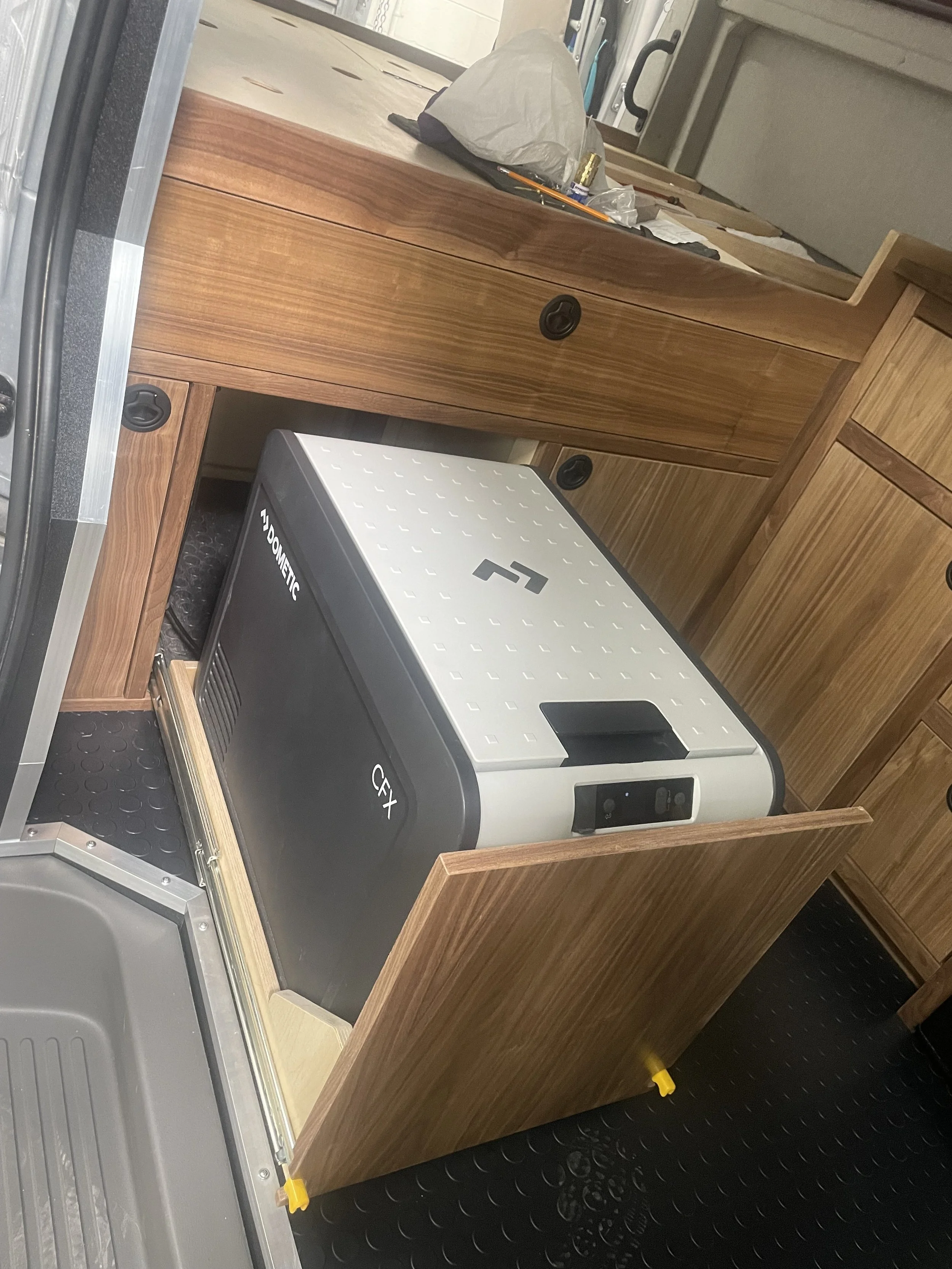

    • Slide-out fridge compartment (Dometic CRX45)

    • Matching-height toilet door

    • Large single drawer between fridge/toilet and bed

    • Built-in ventilation slots

Appliances:

  • Microwave – Upper cabinet mounted with custom door clearance

  • Refrigerators:

    • Dometic CRX45L for drinks (with heavy-duty 500lb lockable slides)

    • Isotherm Freeline 140 (tall/skinny fridge in upper galley area)

Interior Build Features

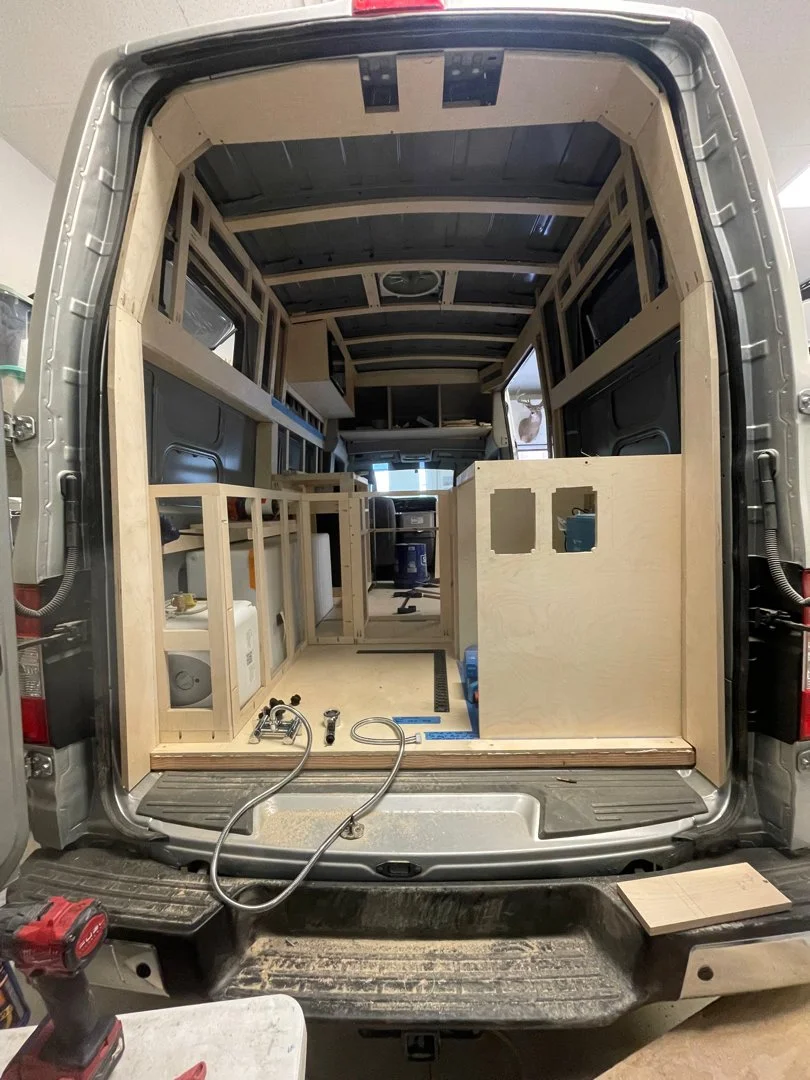

  • Insulation & Framing – Full insulation with foam board in walls and subfloor (1.5"). Framing to accommodate cabinetry and smooth wall paneling in dove gray.

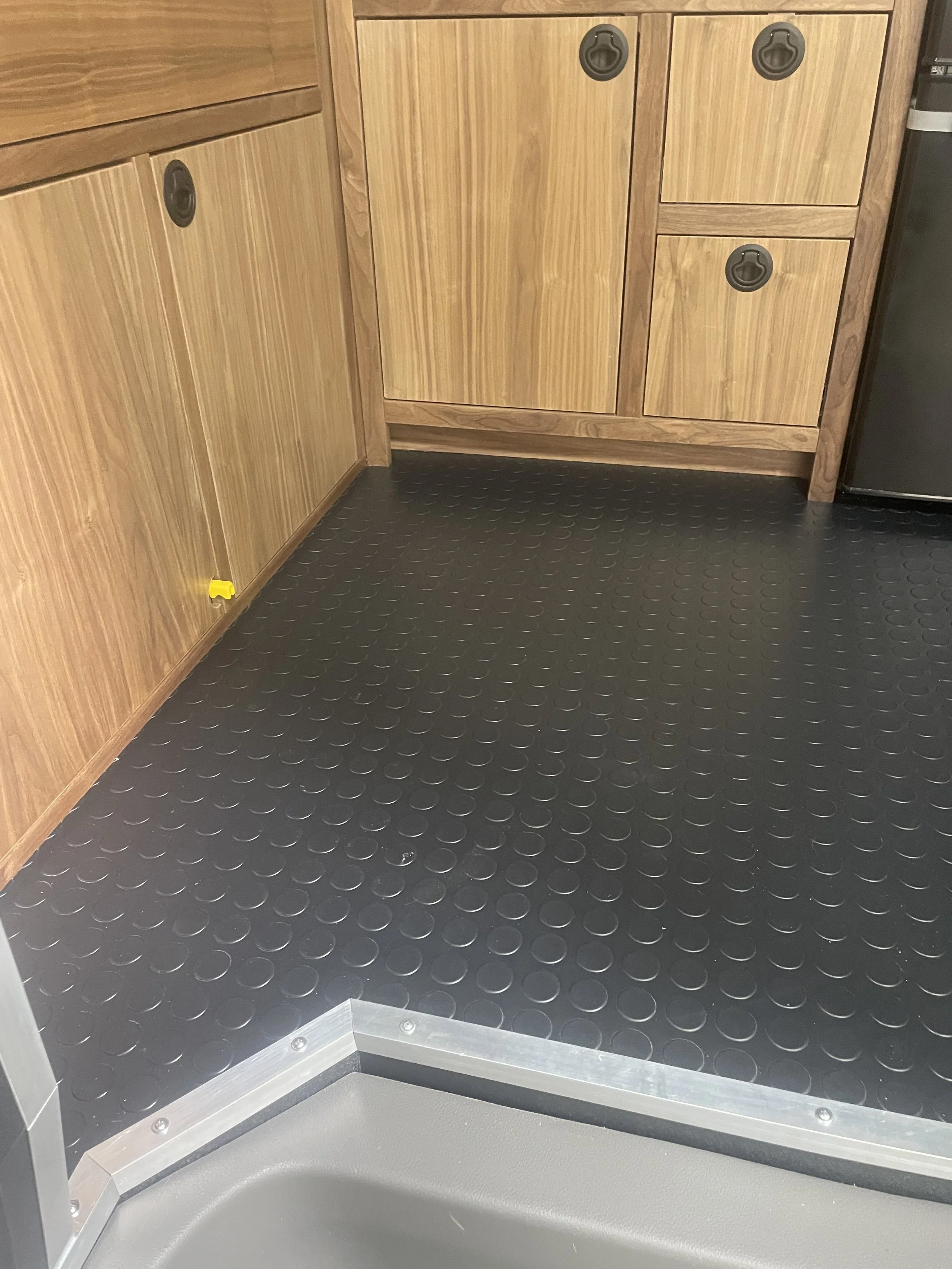

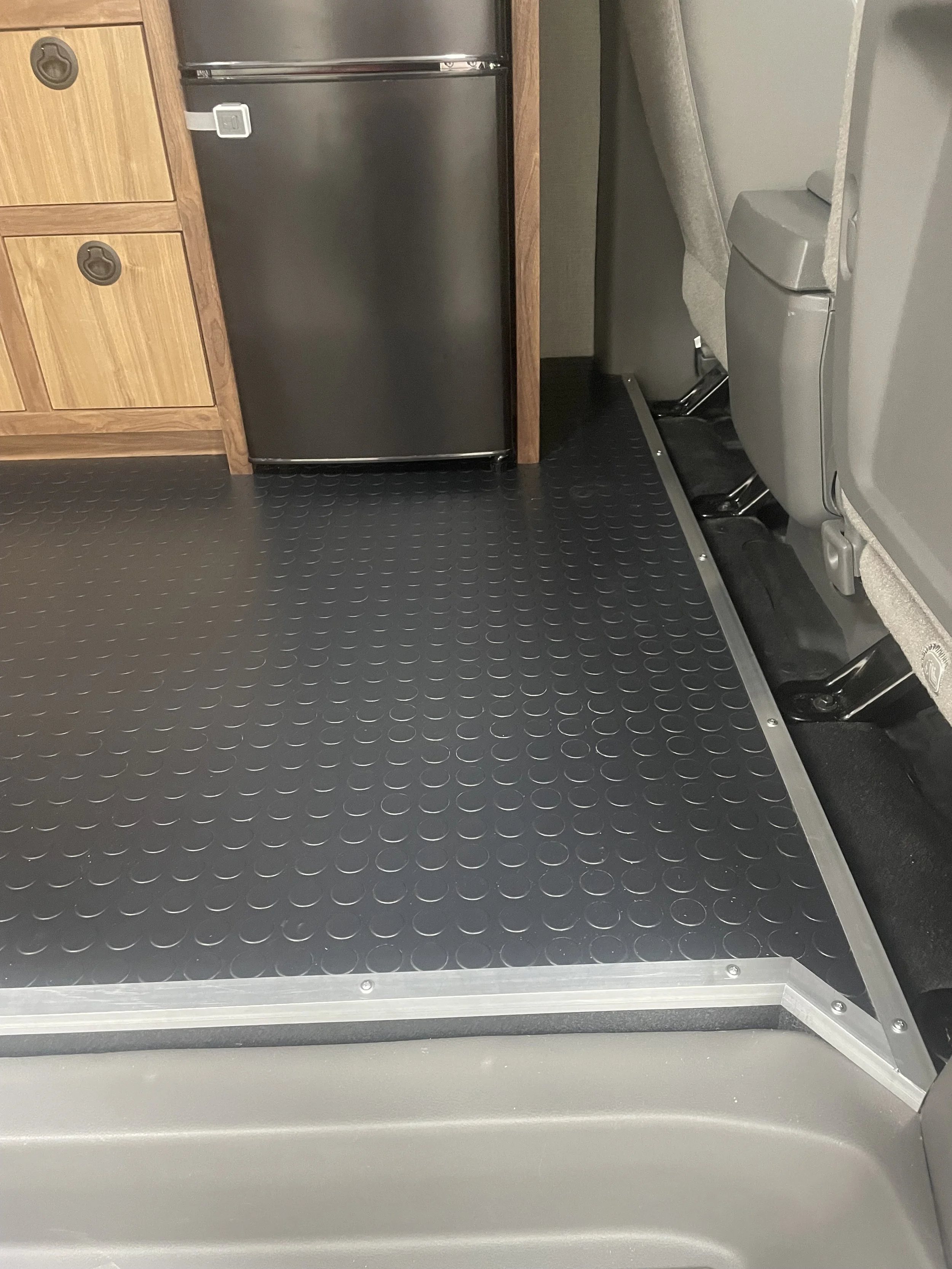

  • Flooring – Durable, odor-free coin flooring.

  • Lighting –

    • Floor-level night light strip

    • Button-activated step entry light

    • LED toe kick and ambient lights throughout

  • Wall & Ceiling Panels – Finished in dove gray with clean trim and secure, rattle-free paneling.

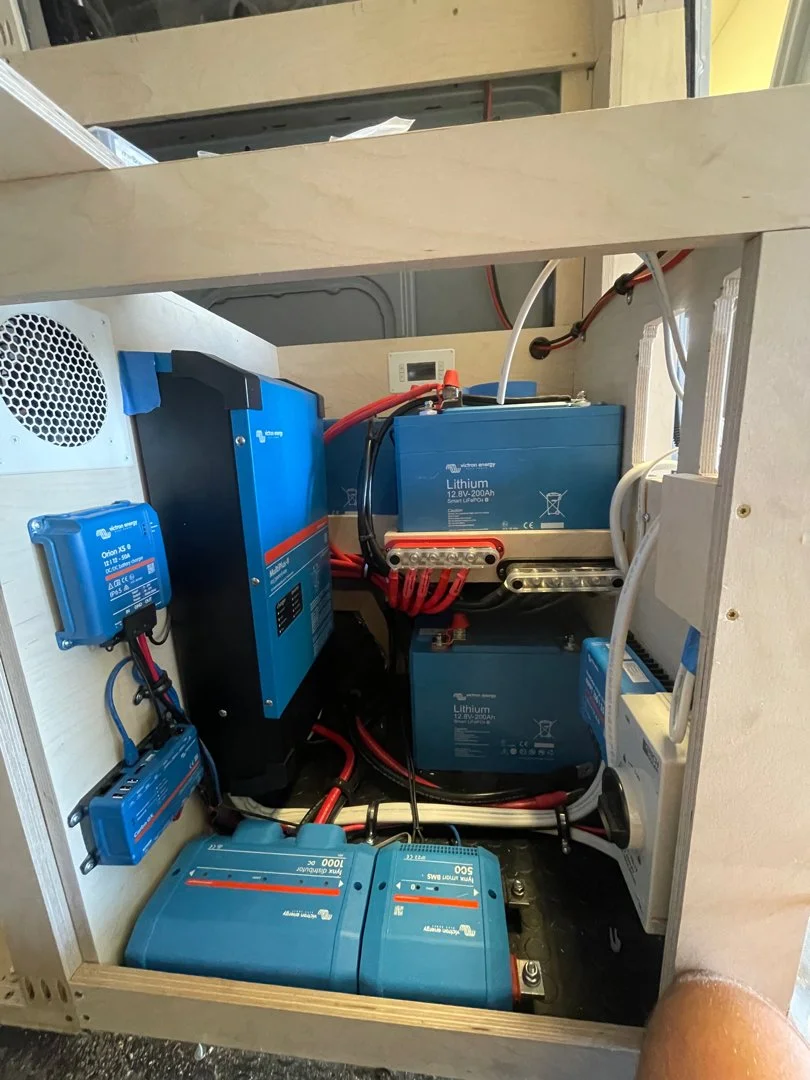

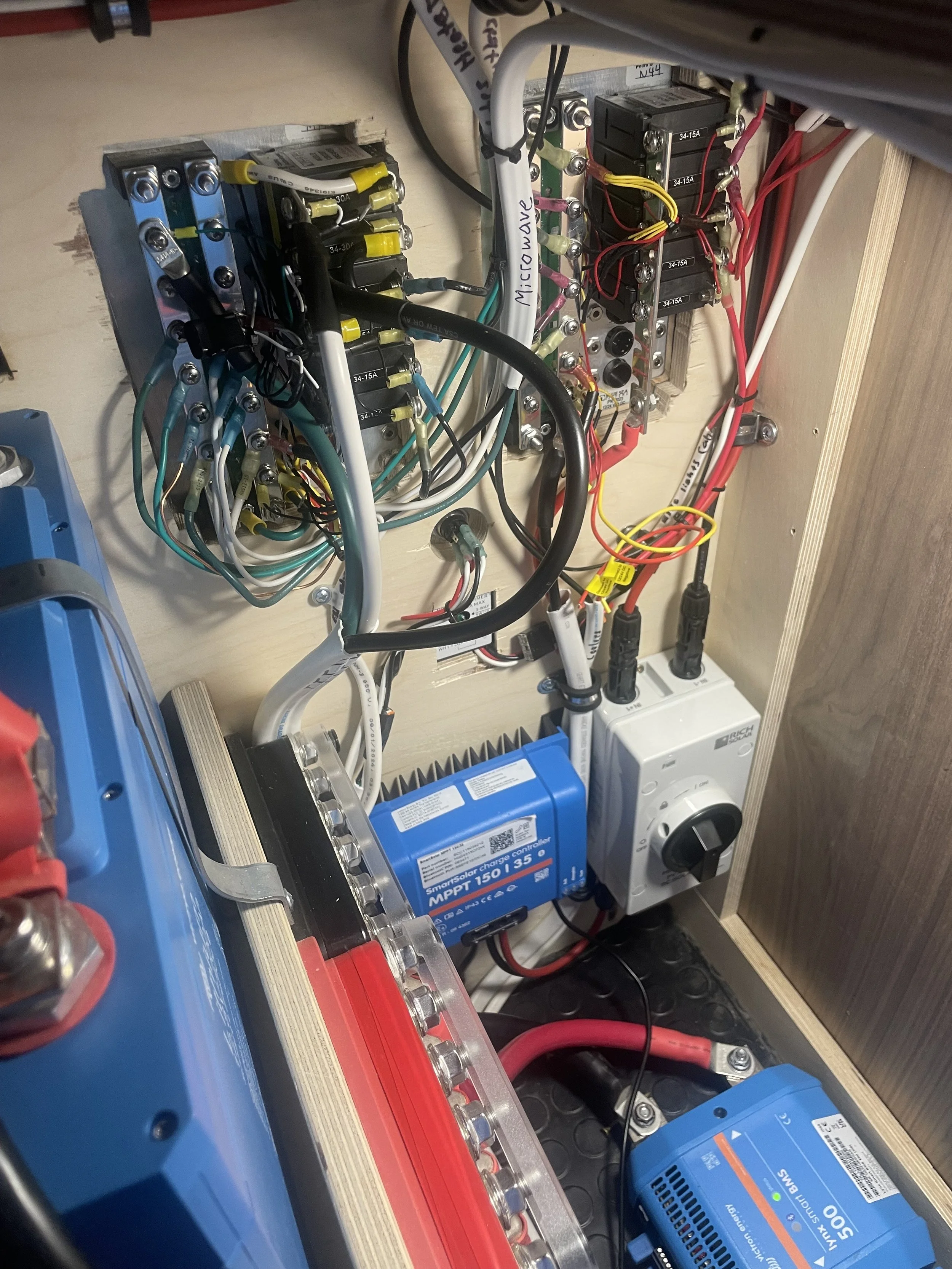

Electrical System

Victron Premium System:

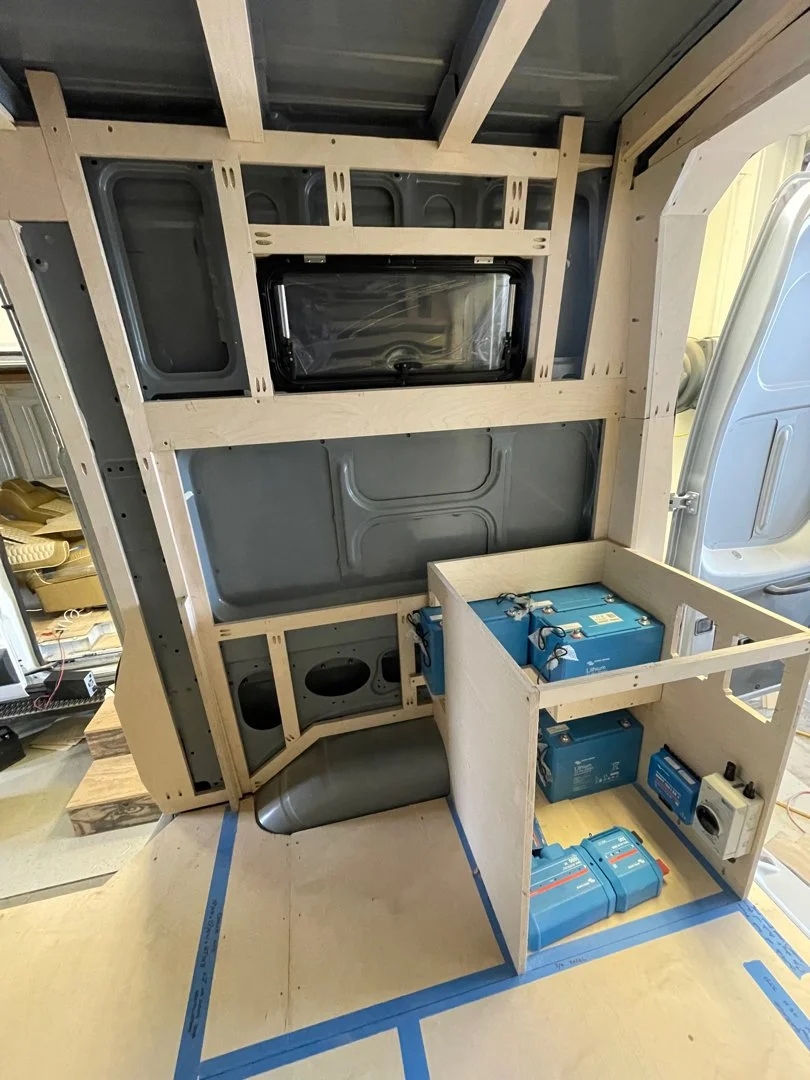

  • Battery Bank – (3) Victron 12.8V 200Ah Smart LiFePO4 batteries

  • Inverter – Victron MultiPlus-II 12/3000/120-50 2x120V Inverter/Charger

  • Charging – DC-to-DC Sterling charger + upgraded alternator

  • Distribution – Victron Lynx Distributor + Lynx BMS

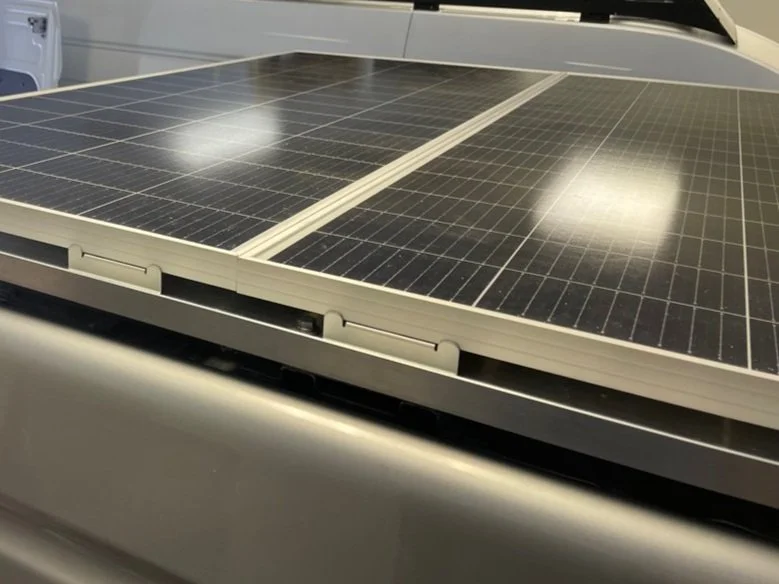

  • Solar – (4) 200W panels with Victron MPPT Smart Solar 100/50

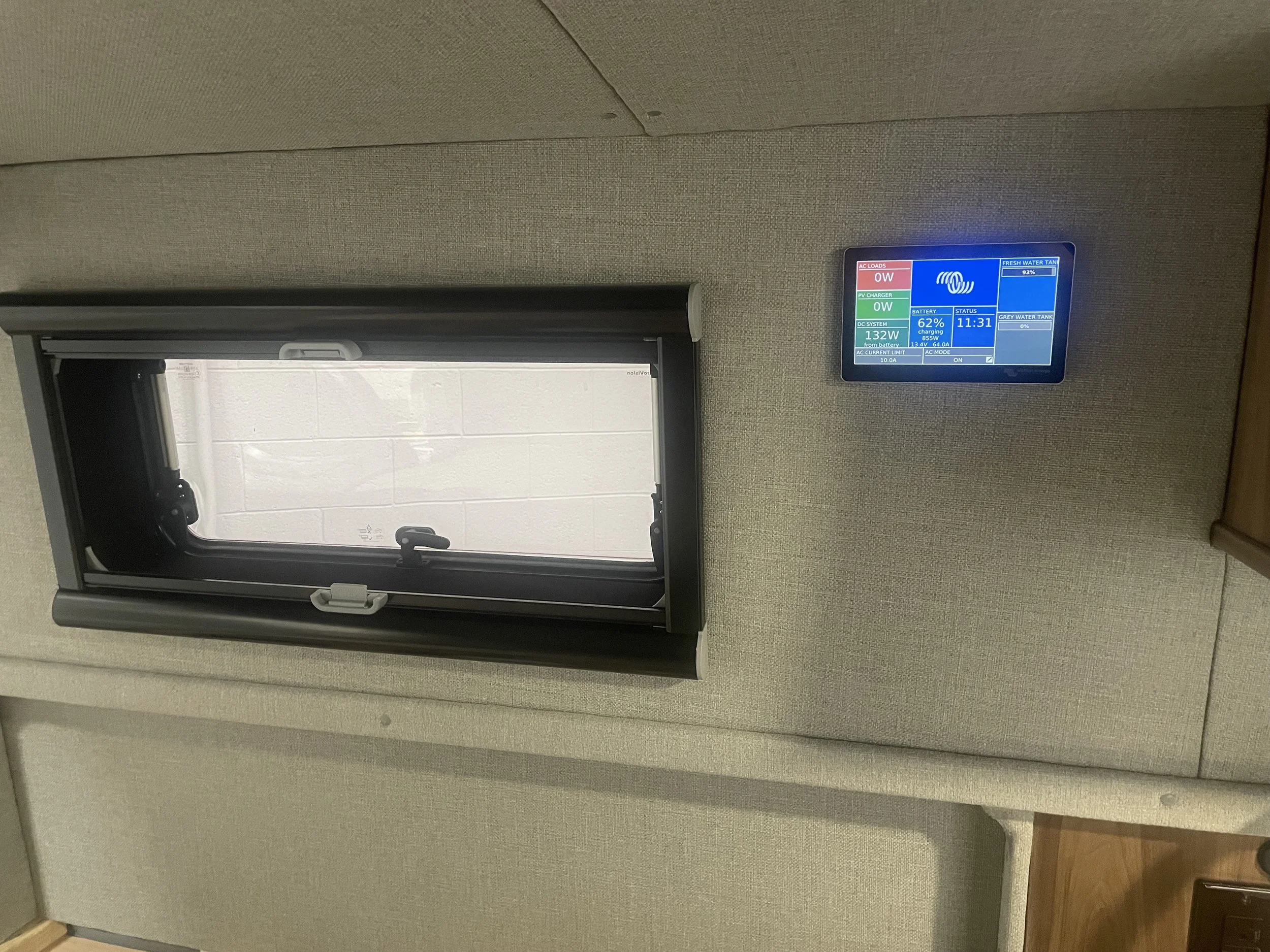

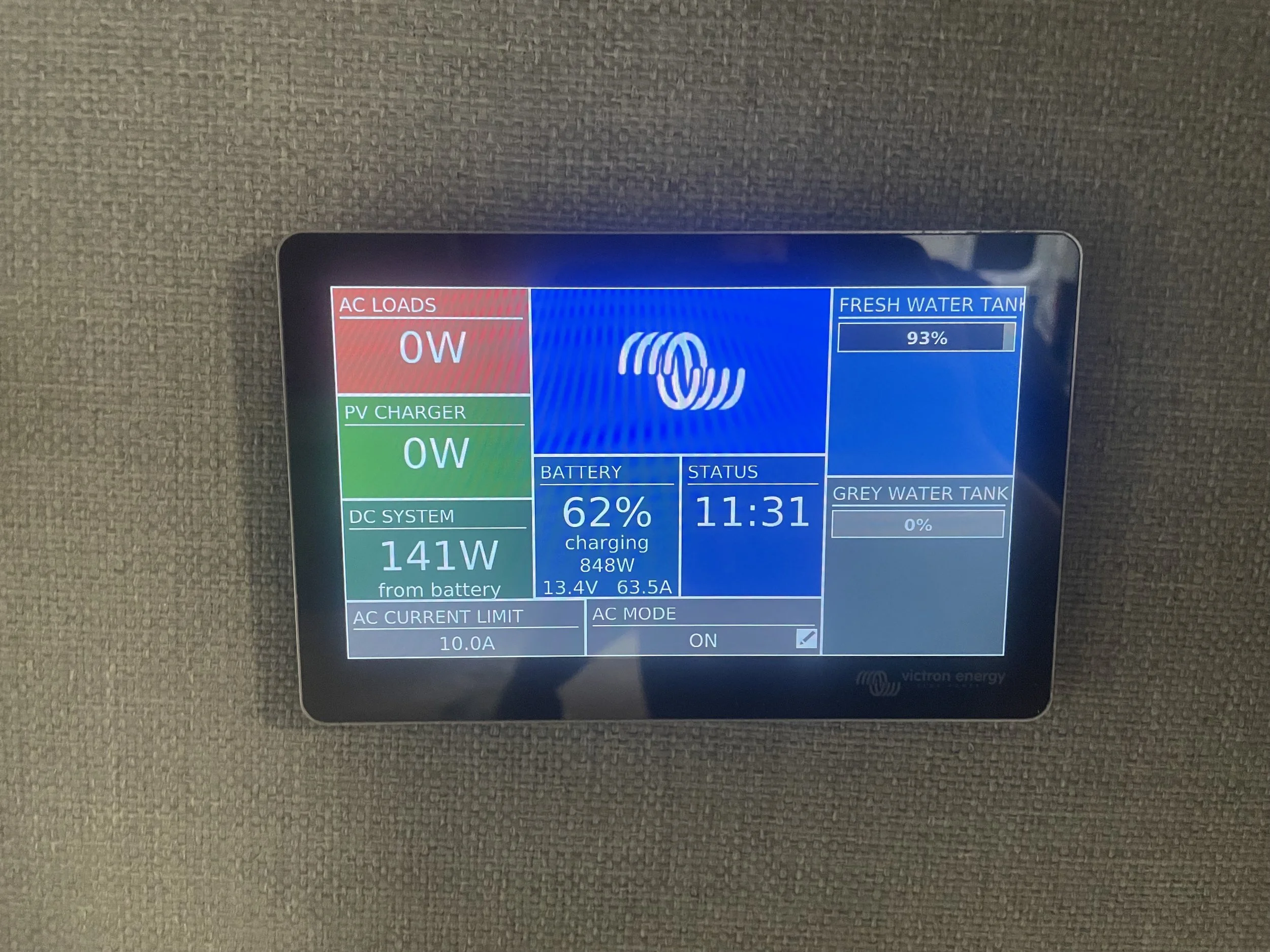

  • Monitoring – Cerbo GX & GX Touch 50 display

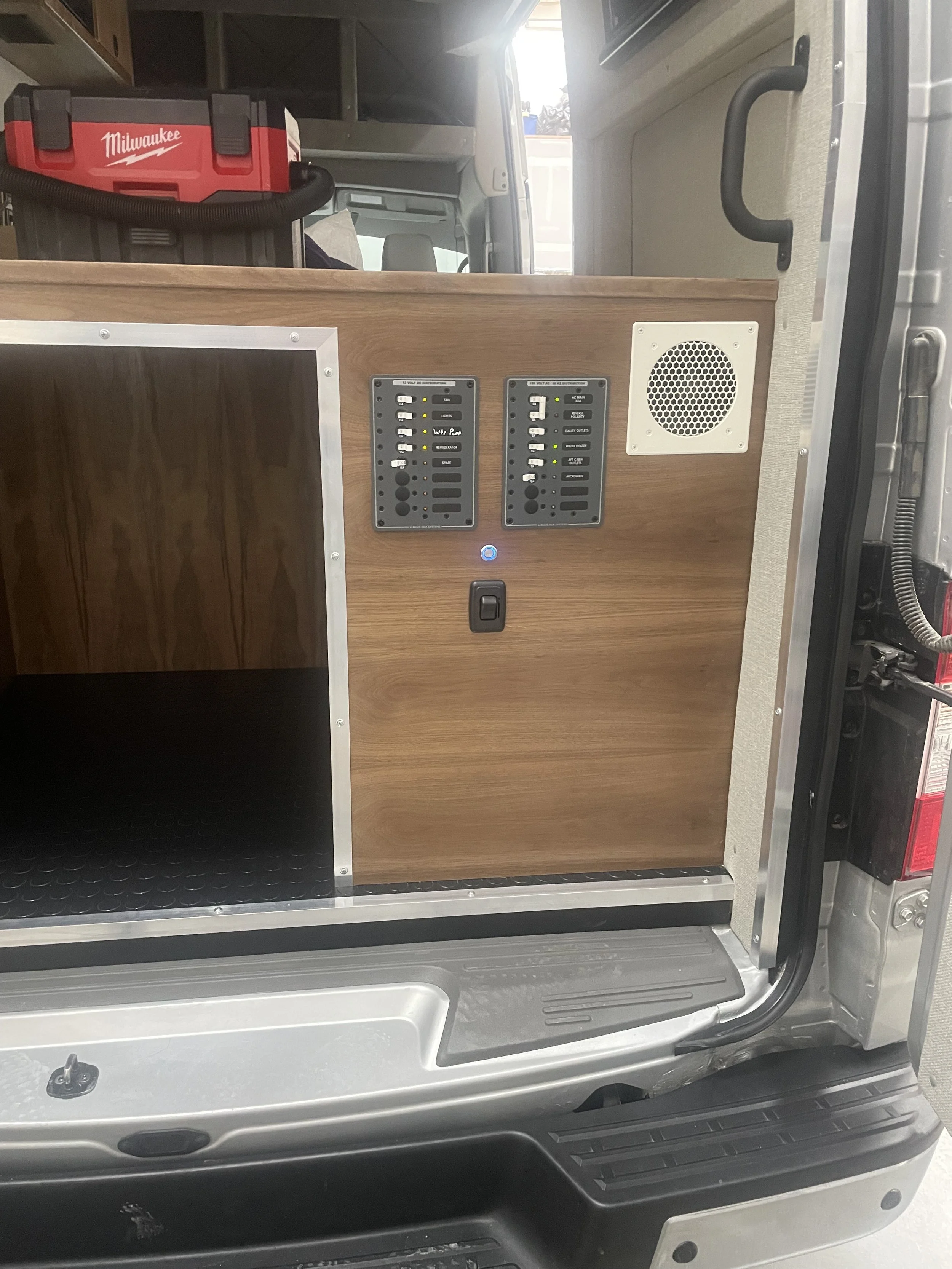

  • Wiring – 4/0 to 6 AWG throughout with Blue Sea Systems distribution panels

  • Lighting & Switches – Marine-grade dimmers and gang switch panels

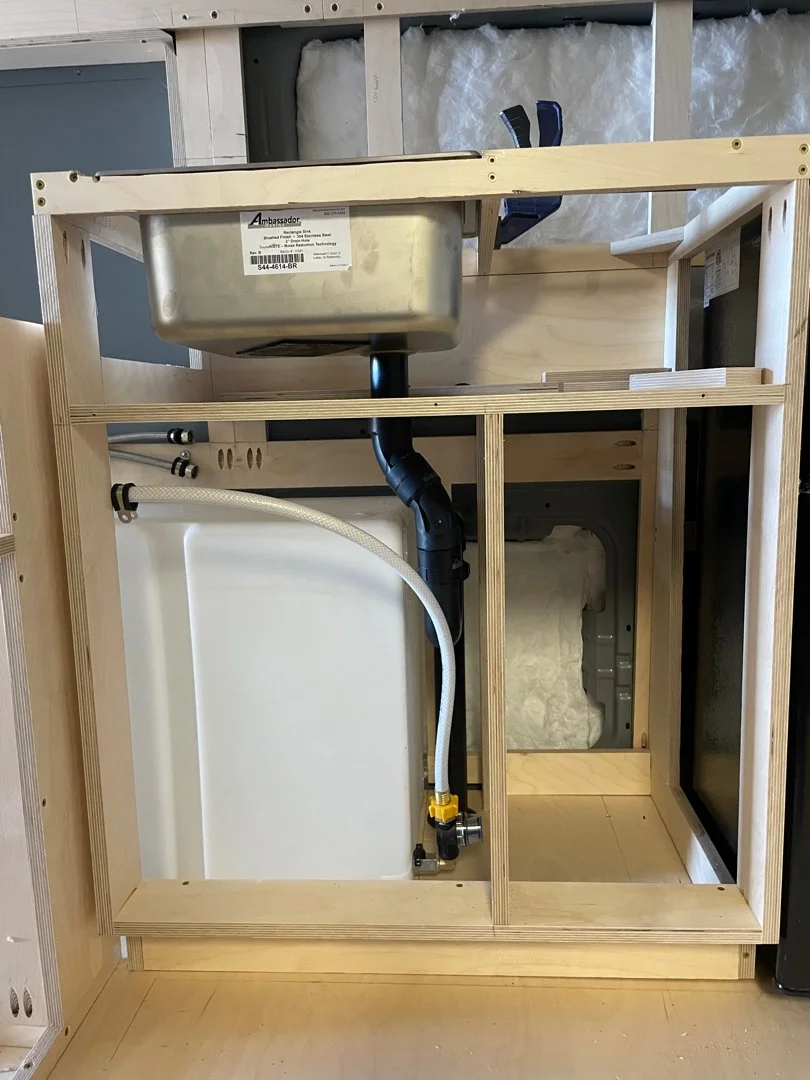

Plumbing System

  • Fresh Water Tank – 35-gallon wheel well tank with lockable gravity/hose fill

  • Gray Water Tank – 5+ gallon undermount with 1.5" gate valve

  • Water Heater – Bosch 7-gallon, wrapped in Thinsulate

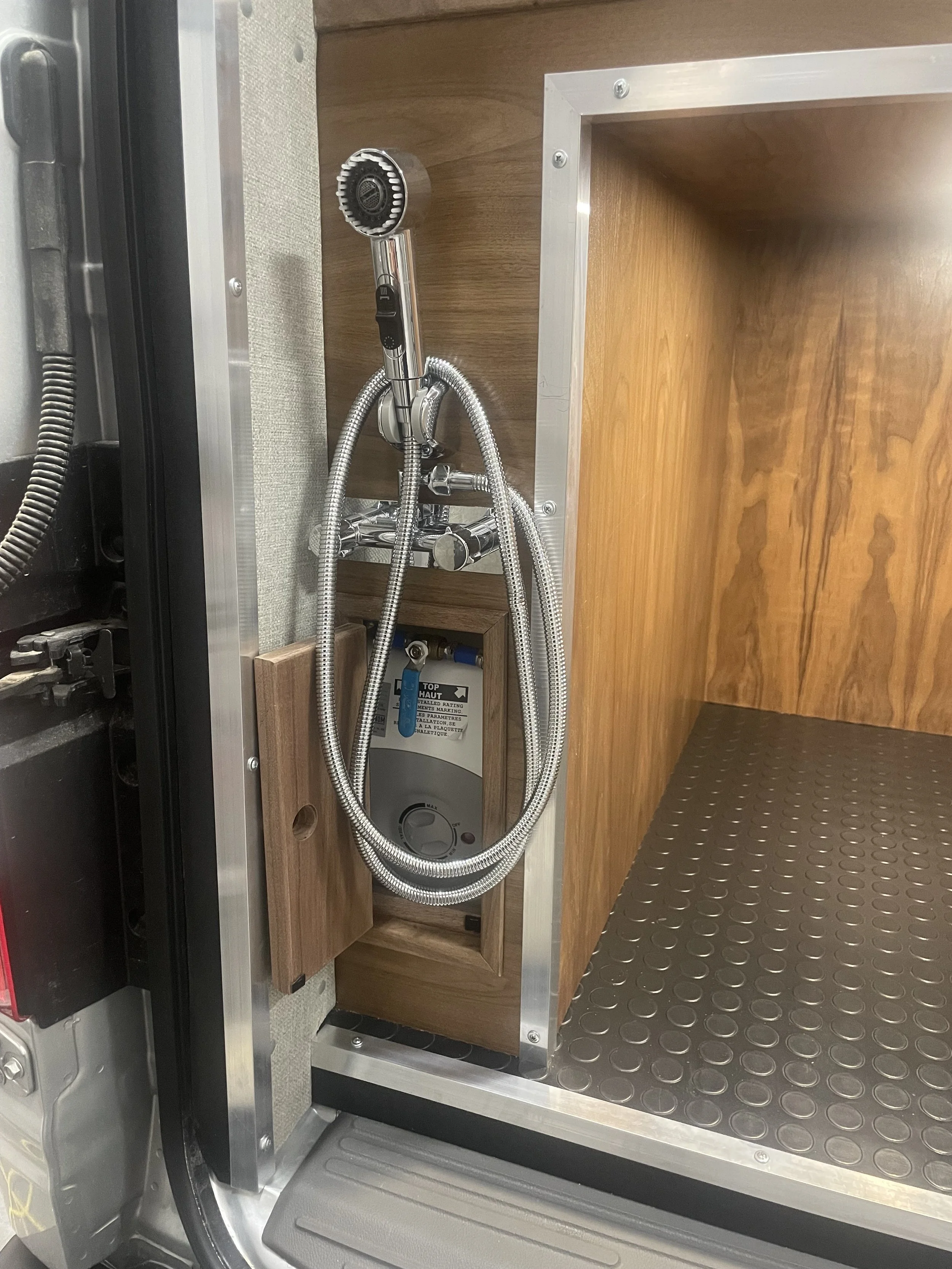

  • Outdoor Shower – High-quality marine-grade unit installed inside rear doors

  • Tank Sensors – Integrated with Victron system for digital monitoring
